Getting to know the ALC-4096-AIH board

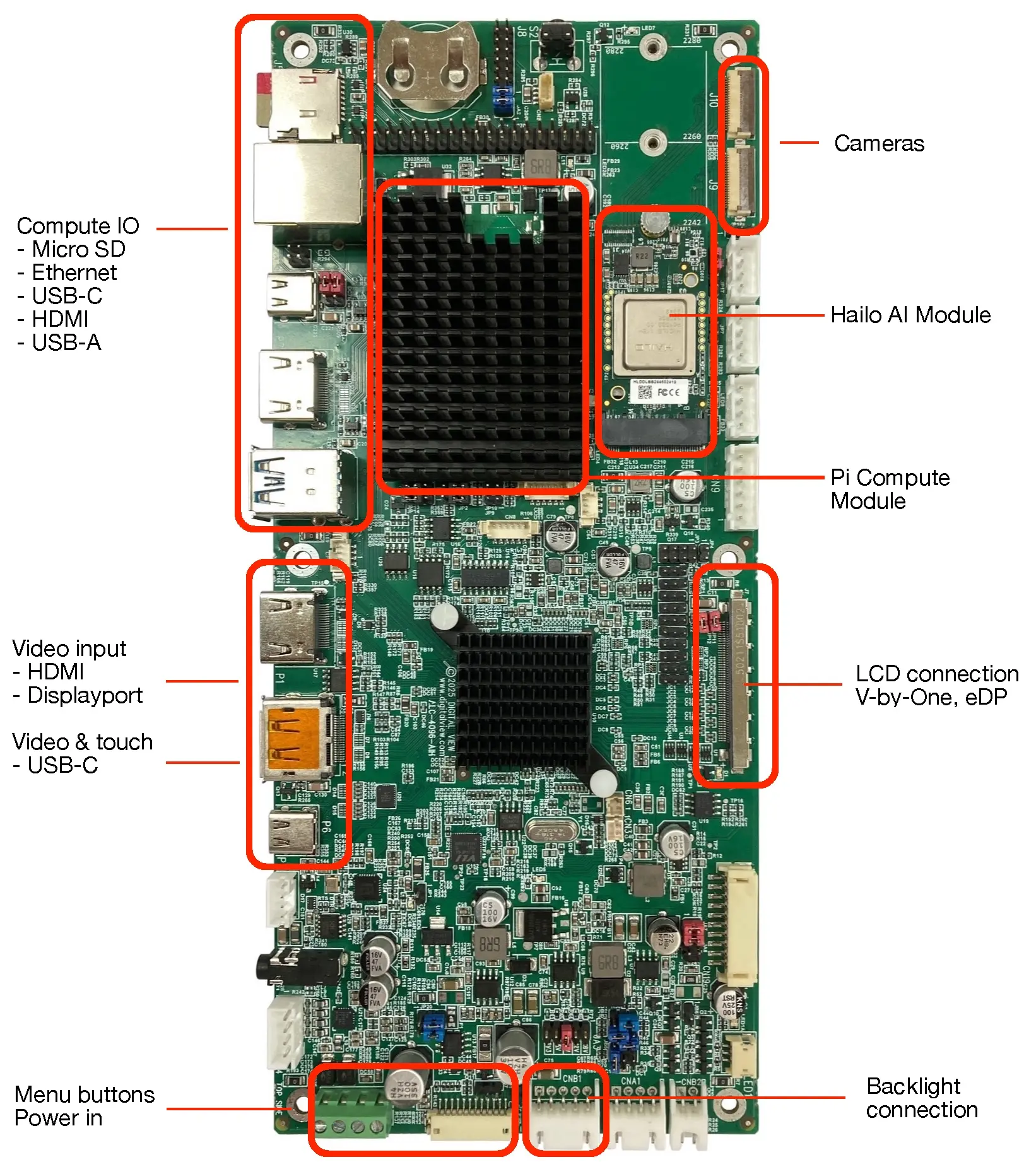

The ALC-4096-AIH board comprises an LCD controller section, a Pi compute module and a Hailo 8 AI accelerator module. In addition there are various connectors for the LCD panel and other parts to a complete working system.


Using a Hailo demo app as an example, setting up the ALC-4096-AIH requires the following:

  • Connecting an LCD panel. This will require the appropriate panel and backlight cables and firmware, which can be updated from a PC using the Displayport.
  • Connecting a camera, for test purposes, use the Pi camera.
  • The appropriate application loaded to the Pi, either by writing an image to the micro-SD or over the LAN connection. The application for the Hailo processor is loaded on the Pi.

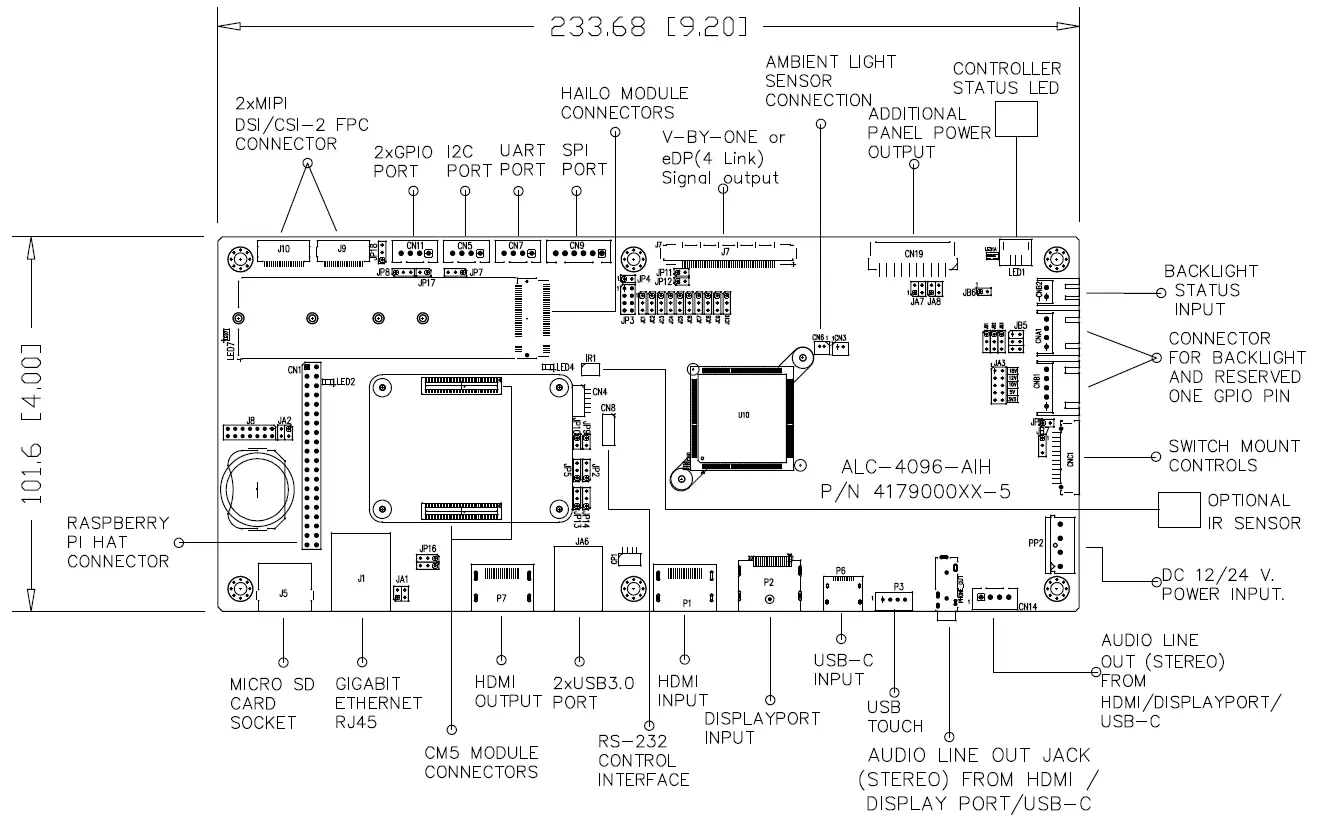

ALC-4096-AIH Connectors

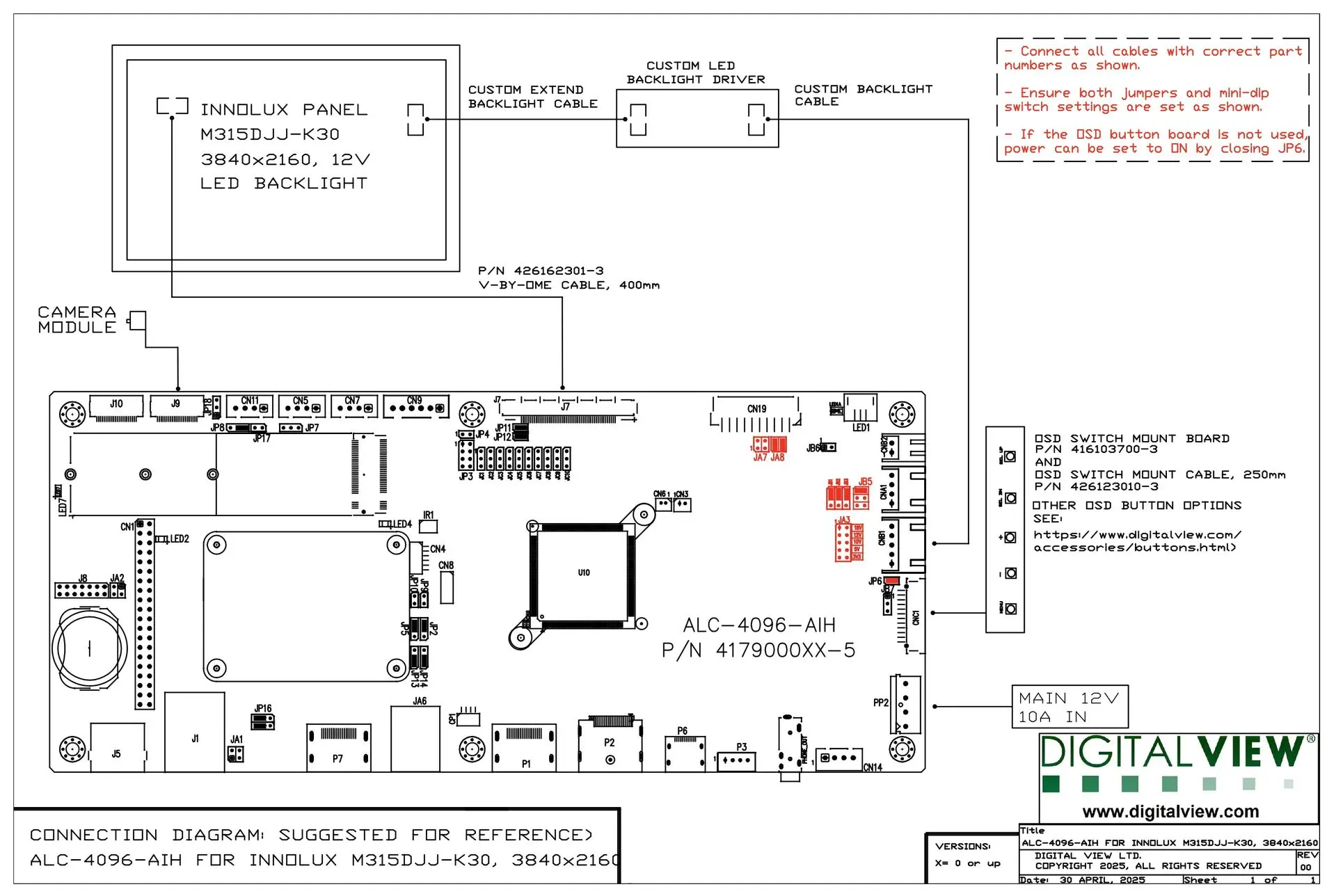

Connection Diagram: ALC-4096-AIH and Innolux 32"

The following is a typical Connection Diagram we publish to show the wiring for panels together with our LCD controller boards.

Multi-Modal Vision
AI processing with two cameras
